Product Description

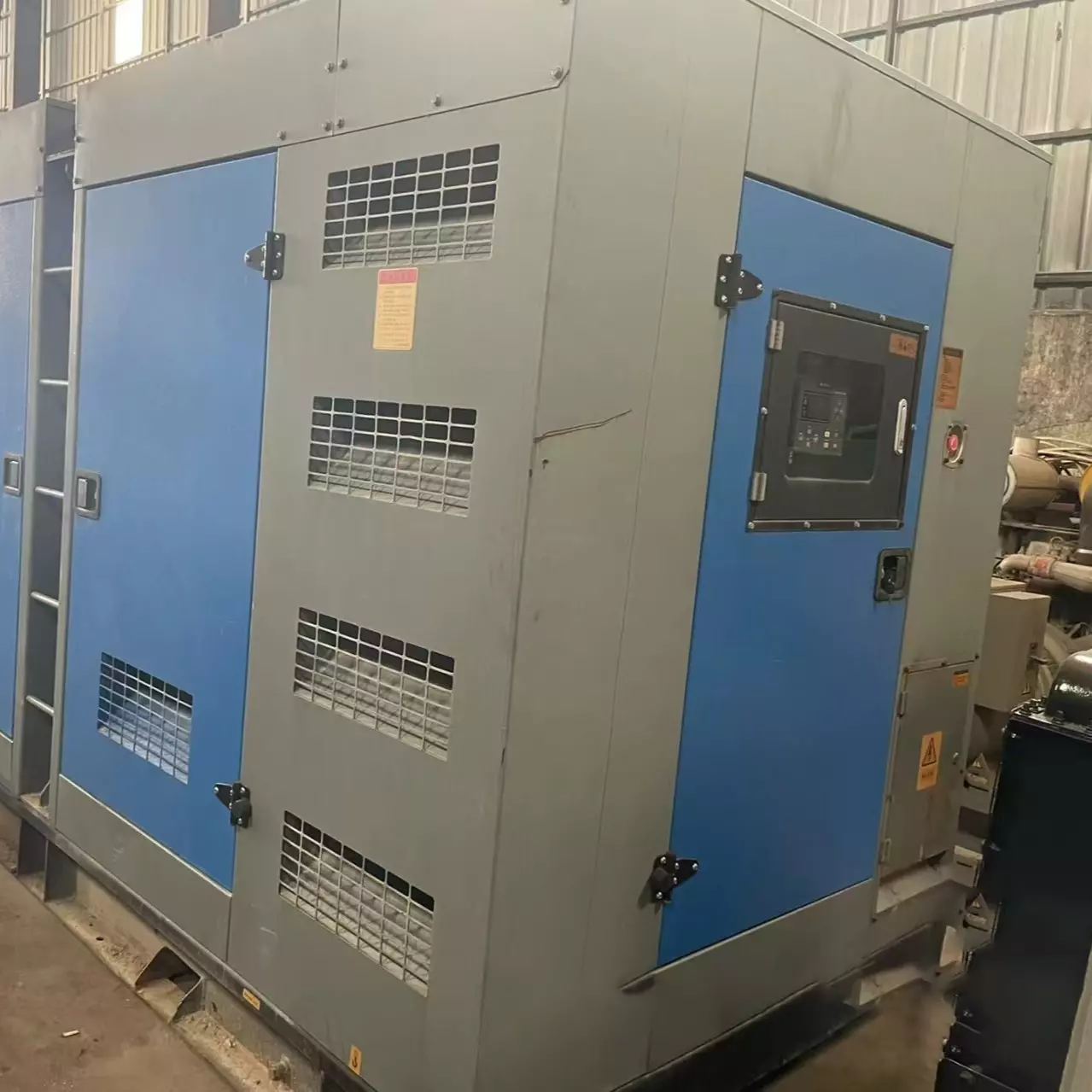

310KW 387.5KVA Electric Diesel Generator Powered by Cummins Engine Silent Type Generator Power-Generating-Sets Best Price for Sale
Product Parameters
| 310KW 387.5KVA Diesel Generator Set Specifications |
| Genset model |
DB-310GF |
| Prime power |
310kW |
| 387.5kVA |
| Standby power |
341kW |
| 426.25kVA |
| Rated voltage(V) |
400/230 (customizable) |
| Rate current(A) |
558A |
| Power factor |
0.8 |
| Frequency(Hz) |
50 |
| Speed(rpm) |
1500 |
| Phase: |
3 phase 4 wire |
| Noise level: |
105dB at 7m ( open type diesel genset) |
| 75dB at 7m(silent type diesel genset) |
| Type |
Dimensions(mm)
L*W*H |
Weight(kg) |
Base bottom fuel tank
(Liter) |
| Open Type |
3250×1360×2100 |
2700 |
Without |
| Silent Type |
4000×1800×2150 |
2850 |
8 hours |
| Engine Specification |
|
| Manufacturer |
Cummins |
| Model |
6ZTAA13-G3 |
| Engine output-prime |
340kW |
| Engine output-standby |
380kW |
| Frequency: |
50Hz |
| Speed: |
1500rpm |
| Cylinders no. & Type: |
6 cylinders, V type, 4 stroke, diesel engine, water-cooled |
| Aspiration: |
Turbocharged&Intercooled |
| Bore*stroke |
130*163mm |
| Displacement |
13L |
| Compression Ratio |
17:1 |
| Governor |
Electronic speed governor |
| Starter motor voltage: |
24V DC |
| Type Injection System: |
direct injection |
| Total Lubrication Capacity: |
45.42L |
| Coolant capacity |
23.1L |
| Cooling way |
Water Radiator & fan |

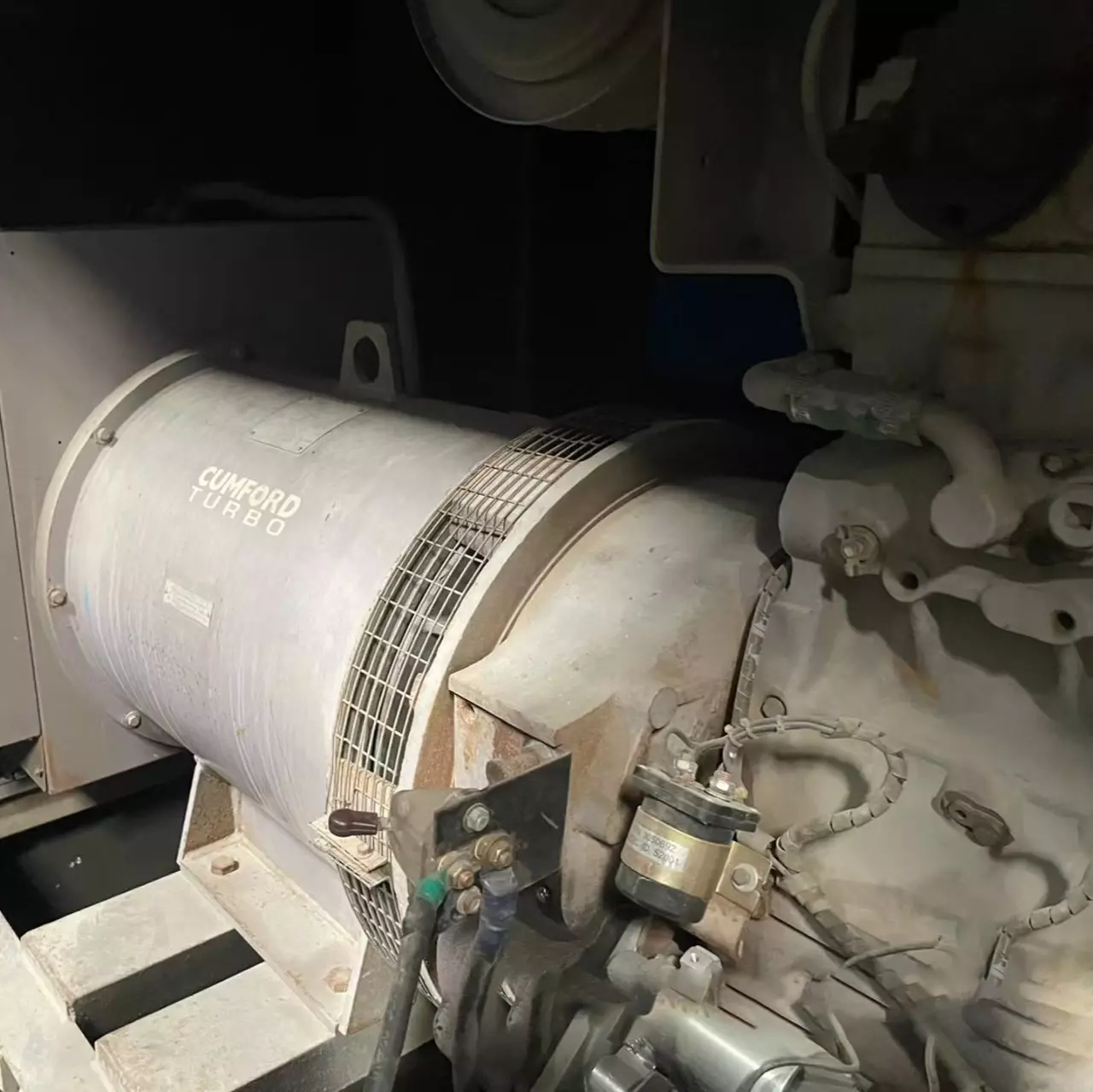

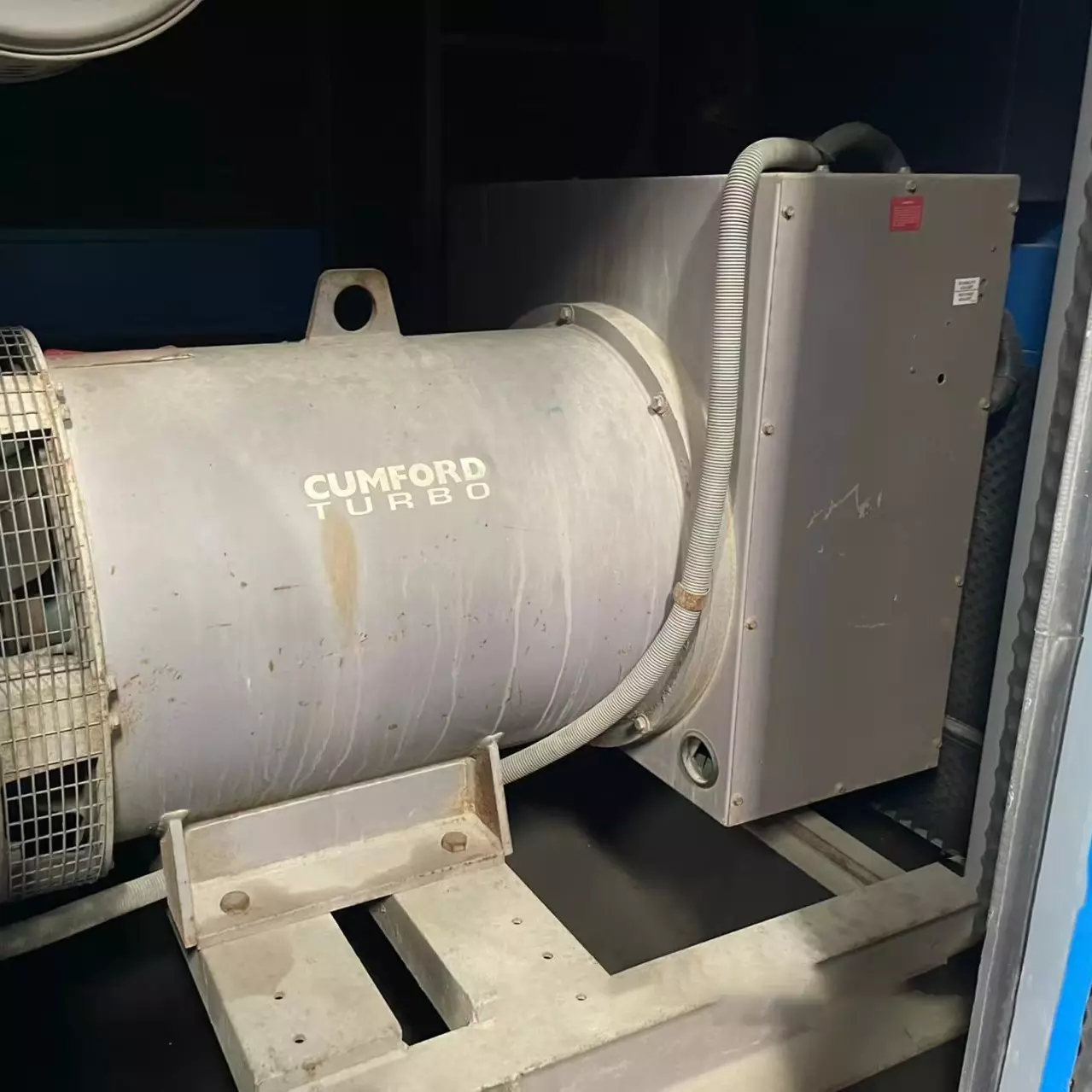

| Alternator |
|
| Alternator brand optional |
Leroy Somer/Marathon/ENGGA |
| Rated Voltage(V) |
400/230 |
| Output way |
3 phase 4 wire |
| Rated power factor |
0.8 |
| Exciter |
Brushless, Self-exciter |
| Wire connecting method |
Y type, 3 phase 4 wire |
| Max voltage regulation |
±1% |
| Protection class |
IP23 |
| Insulation class |
H |
| Rotor: |
Single/double bearing |
| Efficiency: |
95% |
| Regulator: |
AVR |
| Recovery time(Tr) |
1s |
| Waveform : TIF |
<50 |
| Waveform : THF |
<2% |
| Overload |
110% rated load for 2 hour per 24 hour |

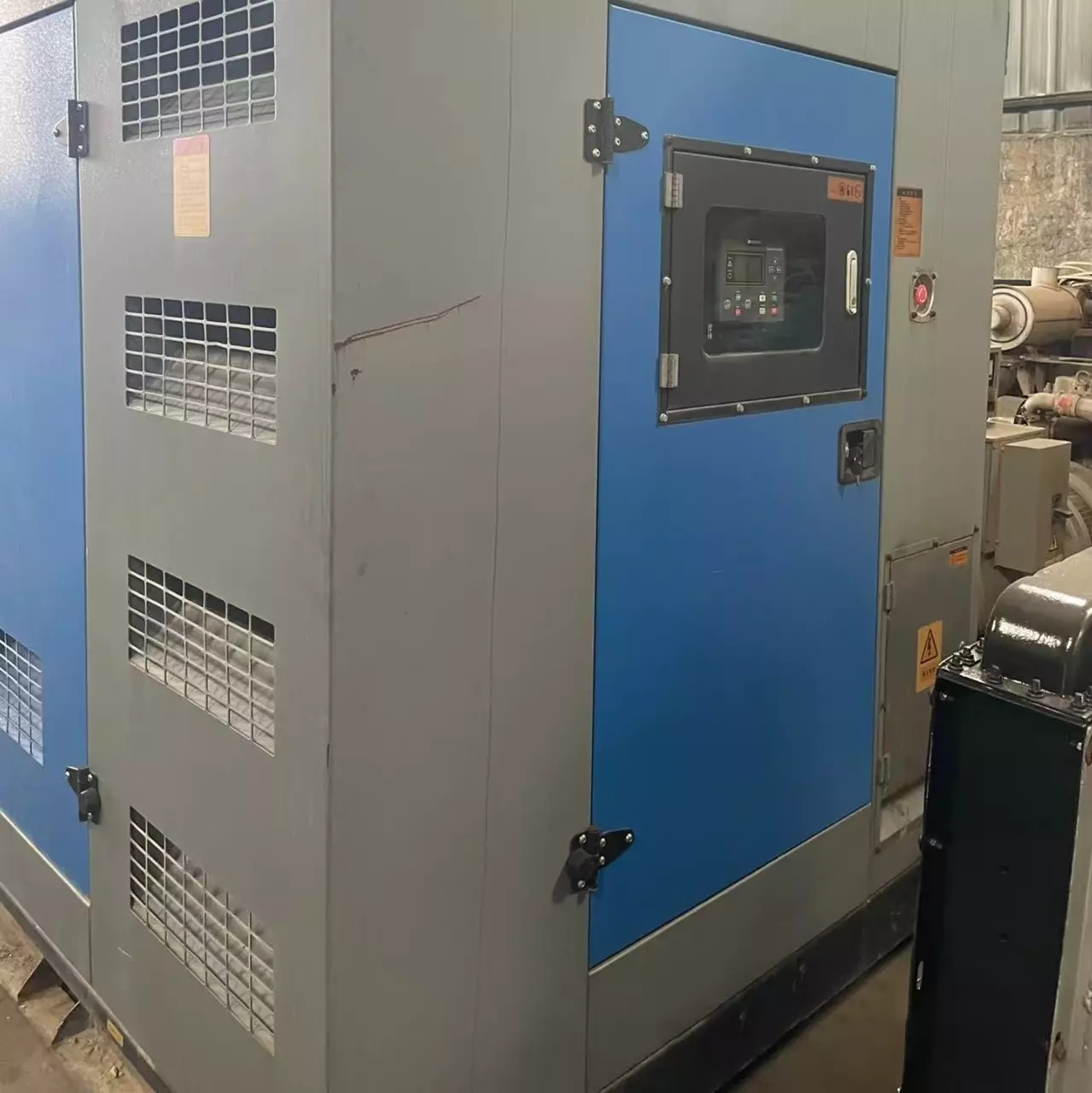

Model:SmartGen HGM6110(optional Deep Sea)
Origin: China
Automatic controller
| Operating Environment |
| Operating temperature: |
-25ºC~70ºC |
| Relative humidity: |
95% |
| Operating voltage: |
DC24V(range: 8-35V) |
Product Features:
HGM6110 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three "remote" (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.
| Genset Model |
Diesel Generator Set |
Engine Model |
Size |
| Prime Power |
Standby Power |
Dimension
( L x W x H:mm ) |
Weight
(KG) |
| KW |
KVA |
KW |
KVA |
| Powered by DCEC Cummins engine, 50Hz/1500rpm |
| DB-17GF |
17 |
20 |
19 |
24 |
4B3.9-G11 |
1650×800×1300 |
760 |
| DB-22GF |
22 |
27 |
24 |
30 |
4B3.9-G1 |
1650×800×1300 |
760 |
| DB-25GF |
25 |
31 |
28 |
35 |
4B3.9-G12 |
1650×800×1300 |
780 |
| DB-32GF |
32 |
40 |
35 |
44 |
4BT3.9-G1 |
1650×800×1300 |
800 |
| DB-45GF |
45 |
56 |
50 |
62 |
4BTA3.9-G2 |
1850×850×1300 |
820 |
| DB-52GF |
52 |
65 |
56 |
70 |
4BTA3.9-G2 |
1850×850×1300 |
820 |
| DB-64GF |
64 |
80 |
72 |
90 |
4BTA3.9-G11 |
1850×850×1300 |
900 |
| DB-80GF |
80 |
100 |
88 |
110 |
6BT5.9-G1 |
2200×850×1600 |
1060 |
| DB-84GF |
84 |
105 |
92 |
115 |
6BT5.9-G2 |
2200×850×1600 |
1060 |
| DB-92GF |
92 |
115 |
100 |
125 |
6BTA5.9-G2 |
2300×850×1600 |
1080 |
| DB-110GF |
110 |
138 |
120 |
150 |
6BTAA5.9-G2 |
2450×850×1600 |
1150 |
| DB-120GF |
120 |
150 |
132 |
165 |
6BTAA5.9-G12 |
2450×850×1600 |
1150 |
| DB-150GF |
150 |
188 |
165 |
206 |
6CTA8.3-G1 |
2450×850×1800 |
1450 |
| DB-150GF |
150 |
188 |
165 |
206 |
6CTA8.3-G2 |
2450×850×1800 |
1450 |
| DB-160GF |
160 |
200 |
176 |
220 |
6CTAA8.3-G2 |
2600×950×1800 |
1860 |
| DB-200GF |
200 |
250 |
220 |
275 |
6LTAA8.9-G2 |
2800×1000×1800 |
2000 |
| DB-220GF |
220 |
275 |
242 |
303 |
6LTAA9.5-G3 |
2800×1000×1800 |
2300 |
| DB-250GF |
250 |
313 |
275 |
344 |
6LTAA9.5-G1 |
2800×1000×1800 |
2500 |
| DB-310GF |
310 |
388 |
340 |
425 |
6ZTAA13-G3 |
3200×1200×1950 |
3000 |
| DB-350GF |
350 |
438 |
385 |
481 |
6ZTAA13-G2 |
3250×1360×2100 |
2700 |
| DB-360GF |
360 |
450 |
396 |
495 |
QSZ13-G5 |
3250×1360×2100 |
3200 |
| DB-400GF |
400 |
500 |
440 |
550 |
QSZ13-G3 |
3250×1360×2100 |
3200 |
| Powered by CCEC Cummins engine, 50Hz/1500rpm |
| DB--200GF |
200 |
250 |
220 |
275 |
NT855-GA |
2900×1000×1800 |
2300 |
| DB--240GF |
250 |
313 |
275 |
344 |
NTA855-G1A |
3000×1040×1655 |
2600 |
| DB--260GF |
260 |
325 |
290 |
363 |
NTA855-G1B |
3000×1060×1800 |
2550 |
| DB-280GF |
280 |
350 |
310 |
388 |
NTA855-G2A |
3000×1060×1900 |
2600 |
| DB-300GF |
300 |
375 |
330 |
413 |
NTAA855-G7 |
3200×1200×1900 |
2850 |
| DB-300GF |
300 |
375 |
330 |
413 |
KTA19-G2 |
3200×1200×1900 |
2850 |
| DB-320GF |
320 |
400 |
350 |
438 |
QSNT-G3 |
3200×1200×1900 |
3000 |
| DB-360GF |
/ |
/ |
360 |
450 |
NTAA855-G7A |
3200×1200×2000 |
3250 |
| DB-360GF |
360 |
450 |
400 |
500 |
KTA19-G3 |
3600×1550×2200 |
3400 |
| DB-400GF |
400 |
500 |
440 |
550 |
KTA19-G3A |
3450×1400×2000 |
3550 |
| DB-400GF |
400 |
500 |
440 |
550 |
KTA19-G4 |
3450×1400×2000 |
3750 |
| DB-430GF |
430 |
538 |
470 |
588 |
KTAA19-G5 |
3450×1500×2200 |
3900 |
| DB-480GF |
480 |
600 |
528 |
660 |
KTAA19-G6 |
3450×1500×2200 |
4300 |
| DB-520GF |
/ |
/ |
520 |
650 |
KTA19-G8 |
3450×1500×2200 |
4400 |
| DB-550GF |
550 |
688 |
600 |
750 |
KTA19-G9A |
3500×1600×2200 |
4580 |
| DB-600GF |
580 |
725 |
640 |
800 |
KTA38-GA |
4500×2000×2300 |
6100 |
| DB-600GF |
600 |
750 |
660 |
825 |
KTA38-G2 |
4500×2000×2300 |
6350 |
| DB-650GF |
650 |
813 |
720 |
900 |
KTA38-G2B |
4300×2060×2430 |
6900 |
| DB-740GF |
728 |
910 |
800 |
1000 |
KTA38-G2A |
4500×2000×2300 |
6800 |
| DB-800GF |
800 |
1000 |
880 |
1100 |
KTA38-G5 |
4500×2000×2300 |
6900 |
| DB-900GF |
900 |
1125 |
1000 |
1250 |
KTA38-G9 |
4500×2000×2300 |
8600 |
| DB-1000GF |
1000 |
1250 |
1100 |
1375 |
KTA50-G3 |
5200×2250×2500 |
10000 |
| DB-1100GF |
1100 |
1375 |
1320 |
1650 |
KTA50-G8 |
5200×2250×2500 |
10000 |
| DB-1200GF |
1200 |
1500 |
1320 |
1650 |
KTA50-GS8 |
5200×2250×2500 |
11000 |
| DB-1340GF |
1340 |
1675 |
1500 |
1875 |
KTA50-G15X |
5200×2250×2500 |
12000 |
| DB-1500GF |
1500 |
1875 |
1600 |
2000 |
KTA50-G16A |
5200×2250×2500 |
12000 |
| Genset Model |
Diesel Generator Set |
DCEC Cummins
Engine Model |
Size |
| Prime Power |
Standby Power |
Dimension
( L x W x H: mm ) |
Weight
( kg ) |
| KW |
KVA |
KW |
KVA |
| Powered by DCEC Cummins engine, 60Hz, 1800rpm |
| DB-20GF |
20 |
25 |
22 |
28 |
4B3.9-G11 |
1650×800×1300 |
760 |
| DB-24GF |
24 |
30 |
27 |
34 |
4B3.9-G2 |
1650×800×1300 |
760 |
| DB-28GF |
28 |
35 |
30 |
38 |
4B3.9-G12 |
1650×800×1300 |
760 |
| DB-36GF |
36 |
45 |
40 |
50 |
4BT3.9-G2 |
1850×850×1300 |
820 |
| DB-51GF |
51 |
64 |
56 |
70 |
4BTA3.9-G2 |
1850×850×1300 |
820 |
| DB-60GF |
60 |
75 |
60 |
75 |
4BTA3.9-G2 |
1850×850×1300 |
820 |
| DB-72GF |
72 |
90 |
75 |
94 |
4BTA3.9-G11 |
1850×850×1300 |
900 |
| DB-91GF |
91 |
114 |
100 |
125 |
6BT5.9-G2 |
2200×850×1600 |
1060 |
| DB-100GF |
100 |
125 |
110 |
138 |
6BT5.9-G2 |
2200×850×1600 |
1060 |
| DB-109GF |
110 |
137.5 |
120 |
150 |
6BTA5.9-G2 |
2300×850×1600 |
1080 |
| DB-114GF |
120 |
150 |
132 |
165 |
6BTAA5.9-G2 |
2450×850×1600 |
1150 |
| DB-136GF |
136 |
170 |
150 |
188 |
6BTAA5.9-G12 |
2450×850×1600 |
1150 |
| DB-159GF |
159 |
199 |
175 |
219 |
6CTA8.3-G2 |
2450×850×1800 |
1450 |
| DB-173GF |
173 |
216 |
190 |
238 |
6CTAA8.3-G2 |
2600×950×1800 |
1860 |
| DB-208GF |
208 |
260 |
228 |
286 |
6LTAA8.9-G2 |
2800×1000×1800 |
2000 |
| DB-227GF |
227 |
284 |
250 |
313 |
6LTAA8.9-G3 |
2800×1000×1800 |
2300 |
| DB-240GF |
240 |
300 |
264 |
330 |
6LTAA9.5-G3 |
2800×1000×1800 |
2300 |
| DB-250GF |
256 |
320 |
280 |
350 |
6LTAA9.5-G1 |
2800×1000×1800 |
2500 |
| DB-318GF |
318 |
398 |
350 |
438 |
6ZTAA13-G3 |
3250×1360×2100 |
2700 |
| DB-355GF |
355 |
443 |
390 |
488 |
6ZTAA13-G2 |
3250×1360×2100 |
2700 |
| DB-364GF |
364 |
455 |
400 |
500 |
QSZ13-G2 |
3250×1360×2100 |
3200 |
| DB-360GF |
360 |
450 |
396 |
495 |
6ZTAA13-G4 |
3250×1360×2100 |
3200 |
| DB-382GF |
382 |
477 |
420 |
525 |
QSZ13-G5 |
3250×1360×2100 |
3200 |
| DB-400GF |
400 |
500 |
440 |
550 |
QSZ13-G3 |
3250×1360×2100 |
3200 |
| DB-440GF |
440 |
550 |
480 |
600 |
QSZ13-G11 |
3250×1360×2100 |
3200 |
| Powered by CCEC Cummins engine, 60Hz, 1800rpm |
| DB-220GF |
- |
- |
220 |
275 |
NT855-GA |
2900×1000×1800 |
2300 |
| DB-320GF |
320 |
400 |
350 |
438 |
QSNT-G3 |
3200×1200×1900 |
2400 |
| DB-250GF |
250 |
313 |
275 |
344 |
NTA855-G1 |
3000×1060×1800 |
2550 |
| DB-275GF |
275 |
344 |
300 |
375 |
NTA855-G1B |
3000×1060×1900 |
2600 |
| DB-275GF |
275 |
344 |
300 |
375 |
NTA855-G2 |
3000×1060×1900 |
2600 |
| DB-315GF |
315 |
394 |
350 |
438 |
NTA855-G3 |
3200×1200×1900 |
2850 |
| DB-350GF |
350 |
438 |
400 |
500 |
KTA19-G2 |
3450×1400×2000 |
3550 |
| DB-410GF |
410 |
513 |
450 |
563 |
KTA19-G3 |
3450×1400×2000 |
3550 |
| DB-450GF |
450 |
563 |
500 |
625 |
KTA19-G3A |
3450×1400×2000 |
3550 |
| DB-450GF |
450 |
563 |
500 |
625 |
KTA19-G4 |
3450×1400×2000 |
3750 |
| DB-470GF |
470 |
588 |
550 |
688 |
KTAA19-G5 |
3450×1500×2200 |
3900 |
| DB-500GF |
500 |
625 |
570 |
713 |
QSK19-G4 |
3500×1600×2200 |
4580 |
| DB-550GF |
550 |
688 |
600 |
750 |
QSK19-G5 |
3500×1600×2200 |
4580 |
| DB-620GF |
620 |
775 |
680 |
850 |
KT38-G |
4200×1820×2200 |
4700 |
| DB-700GF |
700 |
875 |
770 |
963 |
KTA38-G1 |
4500×2000×2300 |
6100 |
| DB-600GF |
725 |
906 |
800 |
1000 |
KTA38-G2 |
4500×2000×2300 |
6350 |
| DB-800GF |
800 |
1000 |
880 |
1100 |
KTA38-G2A |
4500×2000×2300 |
6800 |
| DB-750GF |
750 |
938 |
830 |
1038 |
KTA38-G2B |
4500×2000×2300 |
6800 |
| DB-900GF |
900 |
1125 |
1000 |
1250 |
KTA38-G4 |
4500×2000×2300 |
6900 |
| DB-1100GF |
- |
- |
1100 |
1375 |
KTA38-G9 |
4500×2000×2300 |
8600 |
| DB-1100GF |
1100 |
1375 |
1260 |
1575 |
KTA50-G3 |
5200×2250×2500 |
11300 |
| DB-1130GF |
1130 |
1413 |
1180 |
1475 |
KTA50-G12 |
5200×2250×2500 |
11300 |
| DB-1220GF |
1220 |
1525 |
1430 |
1788 |
KTA50-G12A |
5200×2250×2500 |
11300 |
| DB-1260GF |
1260 |
1575 |
1500 |
1875 |
KTA50-G9 |
5200×2250×2500 |
11300 |
